Bay and bow windows add usable interior space and wide-angle views to homes across Plantation, FL. At Sightline Windows & Doors Plantation, we fabricate and install projecting multi-panel configurations in laminated impact glass, engineered to your specific wind zone. These aren’t decorative afterthoughts. They’re structural assemblies that extend your floor plan while meeting Florida’s toughest hurricane standards. We’ve installed bay and bow units in Plantation neighborhoods from Jacaranda to Plantation Acres, matching each home’s architecture with the right frame material, glass package, and finish. Whether you’re replacing a flat window with a projecting bay or designing a new bow wall for your living room, we measure, fabricate, and install to AAMA 2400/2410 standards with full HVHZ compliance. Call (754) 704-3597 to schedule your free on-site measurement.

Call (754) 704-3597

Product Overview - Bay & Bow Windows

Bay and bow windows project outward from your exterior wall, creating a small alcove inside and a curved or angled facade outside. In Plantation, where homeowners want natural light and extra floor space without sacrificing storm protection, these configurations solve both problems at once.

Our projecting multi-panel bay and bow configurations use laminated impact glass across every lite. That means the same protection you’d expect from a standard hurricane window, built into a three-dimensional assembly that adds interior square footage and panoramic sightlines engineered to your wind zone. The angled side panels capture morning and afternoon light that flat windows miss, and the deep sill area becomes a window seat, plant shelf, or display space.

Architecturally, bay windows typically use three panels set at 30 or 45 degree angles, creating a more angular projection. Bow windows use four, five, or six panels in a gradual curve. Both styles suit the Mediterranean and coastal contemporary homes common in Plantation’s newer developments and the ranch-style homes found in older neighborhoods west of University Drive. We custom fabricate to your opening, so the projection depth and panel count match your wall structure and your preference.

The frames are built from aluminum or vinyl, both materials proven in South Florida’s salt air and UV exposure. The laminated glass, the reinforced mullions between panels, and the engineered header support all work together so the assembly performs as a unit under wind load. A bay window is only as strong as its weakest joint, which is why we don’t adapt flat-window thinking to these three-dimensional assemblies.

Before

After

Technical Specifications

Hurricane & Compliance Performance

Laminated Impact Glass with PVB Interlayer

The laminated impact glass in our bay and bow configurations uses a PVB (polyvinyl butyrate) interlayer that holds shattered glass in the frame even after a direct impact. The glass may crack, but the interlayer keeps the opening sealed against wind and water. This is the same technology used in automotive windshields, adapted for residential hurricane protection.

Miami-Dade NOA and Florida Product Approval

Every configuration we quote carries Miami-Dade NOA (Notice of Acceptance) and Florida Product Approval numbers specific to that frame style, glass package, and size combination. These aren’t blanket certifications. We verify the numbers on your specific quote so your permit submittal matches exactly what gets installed.

FBC High-Velocity Hurricane Zone Compliance

All bay and bow window assemblies are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. In Plantation, which sits in Broward County’s HVHZ jurisdiction, this compliance isn’t optional. It’s the baseline for permit approval and final inspection.

TAS 201 / 202 / 203 Testing Protocol

The products we install are tested under the TAS protocol family: TAS 201 for large-missile impact resistance, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. These are the specific test methods HVHZ-rated products must pass, not generic industry benchmarks.

Design Pressure Matched to Your Wind Zone

Design pressures are matched to your wind zone, up to +/-100 PSF. We never rate a product higher than your location requires. A Plantation home near the edge of the Everglades faces different exposure than one in a sheltered interior neighborhood, and we engineer accordingly.

Energy Performance Options

Low-E insulated glass options are available for energy performance beyond the base impact requirement. In Plantation’s climate, where summer cooling loads dominate, the right glass package reduces heat gain without darkening your view. We specify per orientation: west-facing bow walls get different treatment than north-facing bays.

Color & Glass Options

Our five standard finishes cover the architectural range we see in Plantation homes. White and Almond suit the traditional Florida ranch and Mediterranean styles common west of Pine Island Road. Bronze and Black work with coastal contemporary and modern farmhouse exteriors, especially when the window becomes a visual anchor on a light stucco wall. Tan bridges both worlds, softening the contrast on earth-tone homes without the starkness of pure white.

Glass selection depends on your priorities. Laminated impact glass with PVB interlayer is the hurricane standard, required for HVHZ compliance. Low-E insulated glass adds thermal performance, reflecting infrared heat while passing visible light. Tinted glass reduces glare and solar heat gain for west and south exposures. Clear glass maximizes light transmission where heat gain isn’t the primary concern. We typically specify different glass for different orientations within the same project.

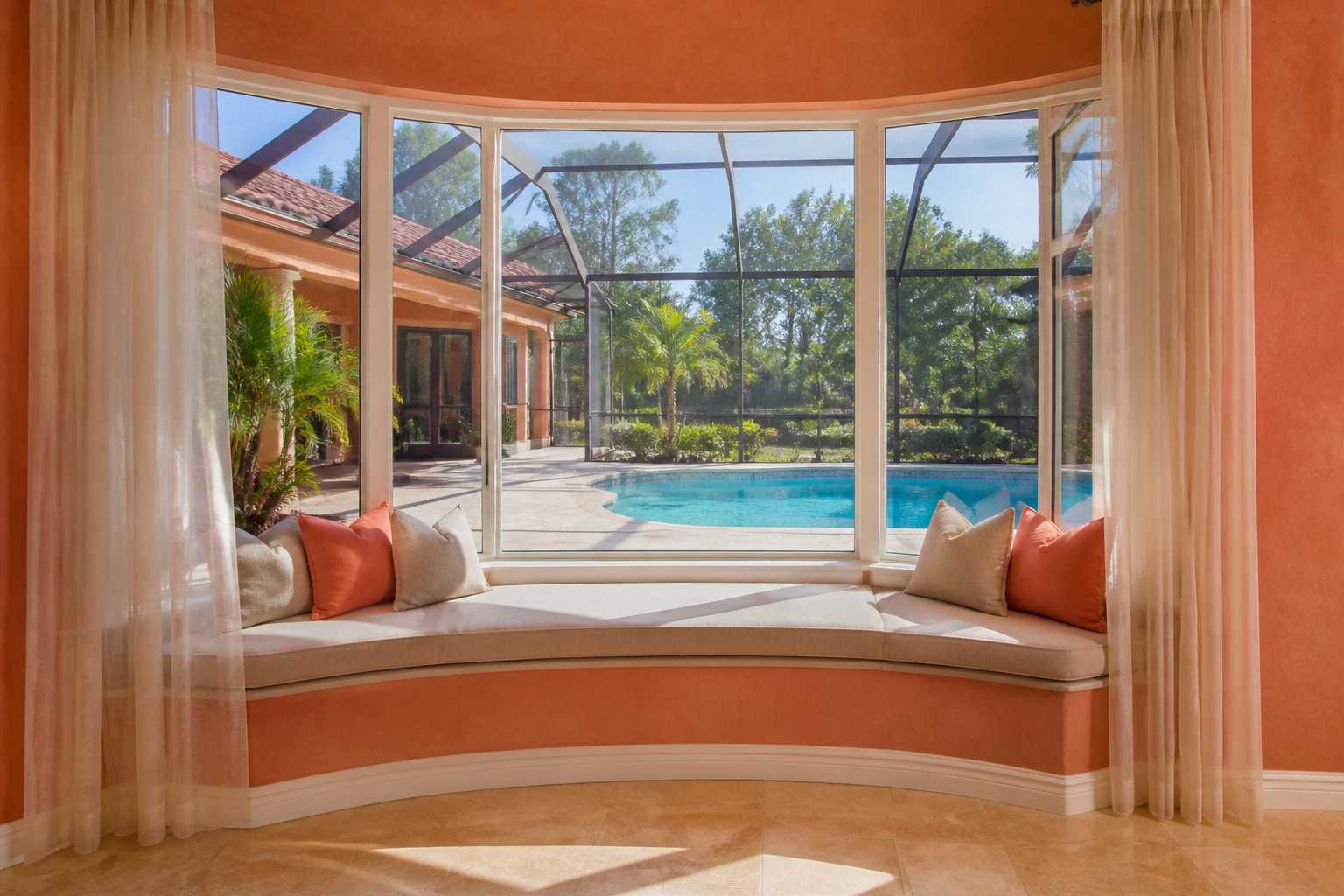

The seat/shelf sill option turns the deep bay or bow projection into functional interior space. In Plantation homes where square footage matters, this isn’t a minor detail. It’s a usable surface built into the window itself.

Installation by Sightline Windows & Doors Plantation in Plantation

Improper installation compromises an NOA-rated system. We’ve seen it happen: a perfectly engineered bay window, installed out of square, with gaps filled by caulk instead of proper foam sealant. The window passes inspection day, then leaks in the first serious storm. At Sightline Windows & Doors Plantation, we treat installation as structural work, not trim carpentry.

Our process starts with a pre-install inspection of your opening. We check the header capacity, the wall condition, and the exposure - a bay on a second story facing open wetland experiences different loads than a ground-floor bow in a courtyard. We verify your wind zone and match the design pressure accordingly.

Setting the unit level, plumb, and square is non-negotiable. A projecting window that isn’t square binds its own operable panels and stresses the frame under wind load. We shim and anchor to the manufacturer’s specified fastening pattern, never improvising.

The perimeter seal uses AAMA 812 low-expansion foam sealant, installed to AAMA 2400/2410 practice standards. This creates a continuous air and water barrier between frame and rough opening. We don’t rely on exterior caulk as the primary seal. The foam backs up the caulk, and the caulk protects the foam.

After installation, we run a water test on the assembly, checking every joint and weep path. In Plantation’s HVHZ jurisdiction, permitting awareness matters. We coordinate with your permit timeline and ensure the installed product matches the NOA submittal exactly. Final cleanup leaves your interior and exterior ready for paint or trim.

Plantation’s coastal exposure and position near the Atlantic breeze corridor mean wind-driven rain hits projecting windows harder than flat walls. Our installation accounts for this reality.

Frequently Asked Questions - Bay & Bow Windows

What wind zone and design pressure is the Bay & Bow Window rated for?

Design pressures are matched to your specific wind zone, up to +/-100 PSF. We engineer each configuration to the exposure at your Plantation address, not a generic regional rating. Call (754) 704-3597 and we’ll confirm your wind zone during your free estimate.

What is the lead time for Bay & Bow Windows?

Lead times vary by manufacturer line, configuration complexity, and current demand. PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass each have different production schedules. We quote current lead times with every project proposal so you can plan your renovation timeline accurately.

Does my Bay & Bow Window require a Miami-Dade NOA or Florida Product Approval submittal for my permit?

Yes, in Plantation’s HVHZ jurisdiction, your permit submittal must include the specific Miami-Dade NOA and Florida Product Approval numbers for your exact configuration. We provide these numbers on your quote and coordinate with your permit documents. Call (754) 704-3597 to start the process.

Can I customize the size or configuration of my Bay or Bow Window?

Yes, every unit is custom fabricated to your opening. Panel count, projection depth, frame material, glass package, and finish are all specified per project. We measure on-site and design to your wall structure and your aesthetic preference. Call (754) 704-3597 to schedule your free on-site measurement.

How do I maintain the frame and glass on my Bay or Bow Window?

Rinse aluminum or vinyl frames with fresh water quarterly to remove salt buildup, especially if you live near Plantation’s western edge where Everglades breezes carry moisture and minerals. Operate venting panels monthly to keep hardware moving freely. Clean glass with standard non-abrasive products. Avoid pressure-washing directly at weep holes or weatherstrip seals. Call (754) 704-3597 if you notice seal degradation or hardware stiffness.

Get a Quote - Bay & Bow Windows in Plantation

Ready to add space, light, and hurricane-rated protection to your Plantation home? We’ll measure your opening, confirm your wind zone, and specify the right bay or bow configuration from our PGT, CGI, CWS, ES Windows, ECO, or Mr-Glass lines. Every quote includes verified NOA numbers, design pressure matching, and a clear scope of installation work. Call (754) 704-3597 to schedule your free on-site measurement and project estimate.
